Motor switch 2gang 230/230 SM (Cutoff relay)

The motor switch 2gang 230/230 SM is a cutoff relay. It can be used to safely control two 230 V motors in parallel.

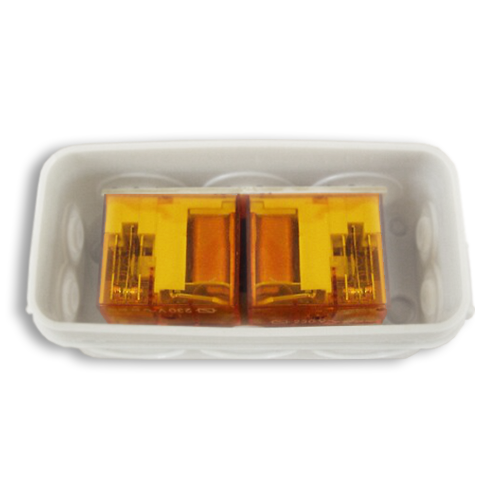

Motor switch 2gang

Technical data

  • Dimensions: L90 x W45 x H38 mm
  • Switching voltage: 230 V AC
  • Switching current: maximum 2000 mA (per channel)
  • Connection type: screw terminals
  • Colour: white
  • Protection class: IP55
Data sheet

Function description

The motor switch 2gang 230/230 SM is used to control two 230 V motors connected in parallel. It is an cutoff relay that ensures that two 230 V motors are controlled without interference and without jolting. With two motors connected in parallel, an cutoff relay is always required to prevent interference. The motors can be conveniently operated together via a switch or push-button.



Article Name
200008 Motor switch 2gang 230/230 SM
