The wind sensor Mini detects the wind speed. Small and discreet, it fits into any building design and is hardly noticeable. It reliably protects your sun protection systems from damage.

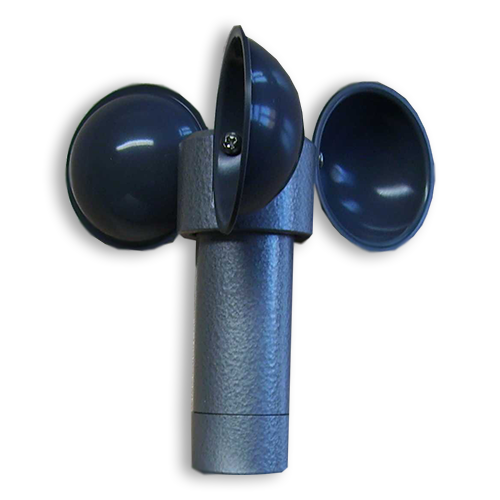

Wind sensor Mini

Technical data

  • Dimensions: Ø110 x H110 mm
  • Contact type: reed contact, 10 m/s ≙ 40 pulses
  • Wind load: max. 50 m/s
  • Cable: 2 m
  • Mounting type: wall bracket
  • Colour: silver
  • Protection class: IP65

Function description

With the wind sensor Mini you can prevent damage to your sunshade systems caused by strong wind. It is optimised for wall mounting on the façade of your building and registers the prevailing winds there.

If the wind speed is exceeded, a wind alarm is triggered immediately. The sunshade can be retracted or deactivated independently. After the maximum wind speed has been undershot, the shading is automatically retracted again, if desired. A delay prevents the sunshade systems from being constantly activated in the event of gusts of wind.

No more damage caused by wind and storm with the wind sensor Mini.



Article Name
131024 Wind sensor Mini
