MCU LL 1gang PSU 24/230

The MCU LL 1gang PSU 24/230 controls a 230 V drive. It has a logic of the latching logic type. The MCU LL 1gang PSU 24/230 has its own power supply unit for the control voltage.

MCU LL 1gang PSU 24/230

Technical data

  • Supply voltage: 24 V DC
  • Current consumption: 25 mA DC
  • Rated voltage: 24 V DC
  • Rated current: 3 A AC
  • Control voltage: 24 V DC
  • Connection type: screw terminals
  • Protection class (surface-mounted): IP54
Data sheet

Function description

The control unit is especially suitable for latching switches. It cancels the command for the engaged direction of movement when a higher-level command is pending. This prevents the drive from moving in the direction of the latching switch again after the higher-level command.



Article Name Case Dimensions
200127 MCU LL 1gang PSU 24/230 None L75 x W75 x H20 mm

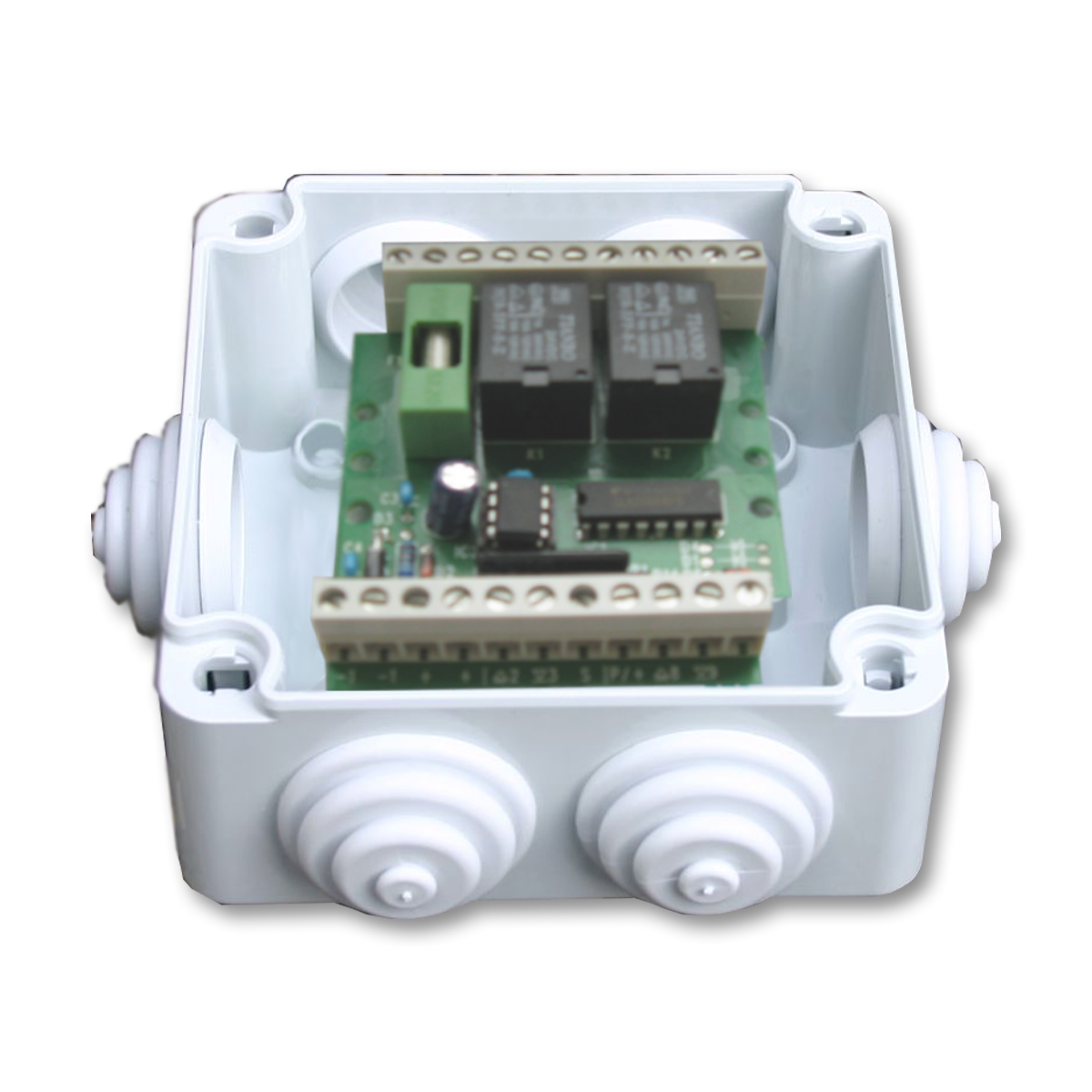

200128 MCU LL 1gang PSU 24/230 SG-03 surface-mounted L182 x W90 x H50 mm
