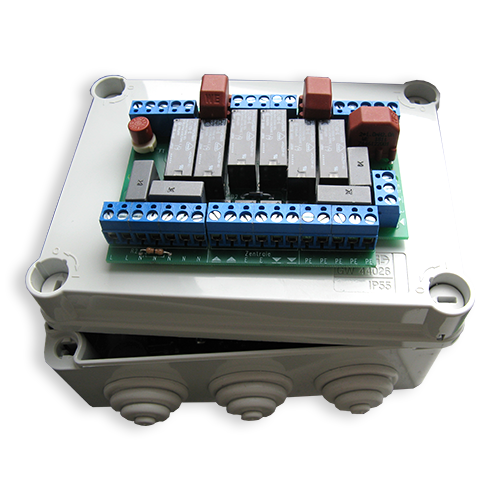

The MCU PL 3gang 230/230 can control 3 motors with a maximum of 250 V~. This means that three units can be controlled and conveniently operated with one control unit.

control unit 3gang 230 V

Technical data

  • Supply voltage: 230 V AC
  • Current consumption: 45 mA AC
  • Rated voltage: maximum 250 V~ 50 Hz potenialfree
  • Rated current: 1,2 A AC (per channel)
  • Control voltage: 230 V AC
  • Connection type: screw terminals
  • Protection class (surface-mounted): IP54

Function description

The MCU PL 3gang 230/230 controls your Smart Home products in the simplest way. For example, a roller shutter is lowered as long as you keep the button pressed.    When you release the button, the roller shutter stops. The same applies when raising the roller shutter. With the control unit 1gang you can control simply and easily. The MCU PL 3gang 230/230 is for 3 motors with max. 250V~. This means that you can control two Smart Home products with it.


Related articles

Article Name Case Dimensions
200032 MCU PL 3gang 230/230 None L105 x B75 x H30 mm
200033 MCU PL 3gang 230/230 flush-mounted L160 x B160 x H70 mm
200034 MCU PL 3gang 230/230 surface-mounted L190 x B140 x H70 mm
