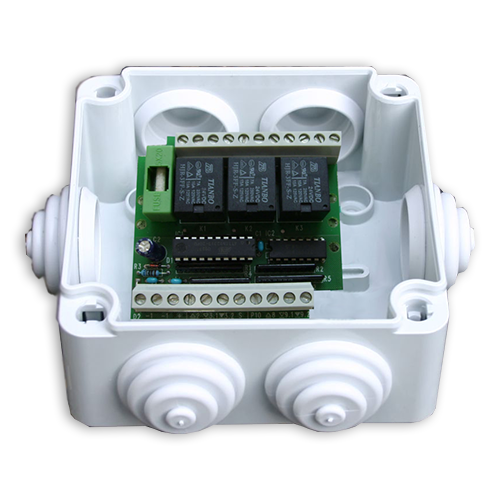

As the name suggests, this control unit allows two limit switches to be defined. This is particularly practical for blinds and external venetian blinds. Use one limit switch for the position and the other for the slats. This ensures the usual CREA SYSTEMS operating convenience even for hangings with slats.

control unit time logic for 2 limit switches

Technical data

  • Supply voltage: 20 to 35 V DC
  • Current consumption: 32 mA DC
  • Rated voltage: 230 V AC 50 Hz
  • Rated current: 3 A AC
  • Control voltage: 20 to 35 V DC
  • Connection type: screw terminals
  • Protection class (surface-mounted): IP54

Function description

The control unit is used to control motors with a second limit switch in the low direction and a rated voltage of max. 230V~. The control voltage is supplied via a preceding power supply unit.

Operation is via a central control unit and/or push-buttons. The logic of the control is time logic. This means that if the button is held down for longer than 2 seconds, the blind moves to the end position. It only stops when the end position has been reached or a push button has been pressed.


Article Name Case Dimensions
200075 MCU TL 1gang 2xlimit switches 24/230 None L75 x B75 x H20 mm
200076 MCU TL 1gang 2xlimit switches 24/230 FM flush-mounted L106 x B106 x H57 mm
200077 MCU TL 1gang 2xlimit switches 24/230 AP surface-mounted L131 x B131 x H60 mm
